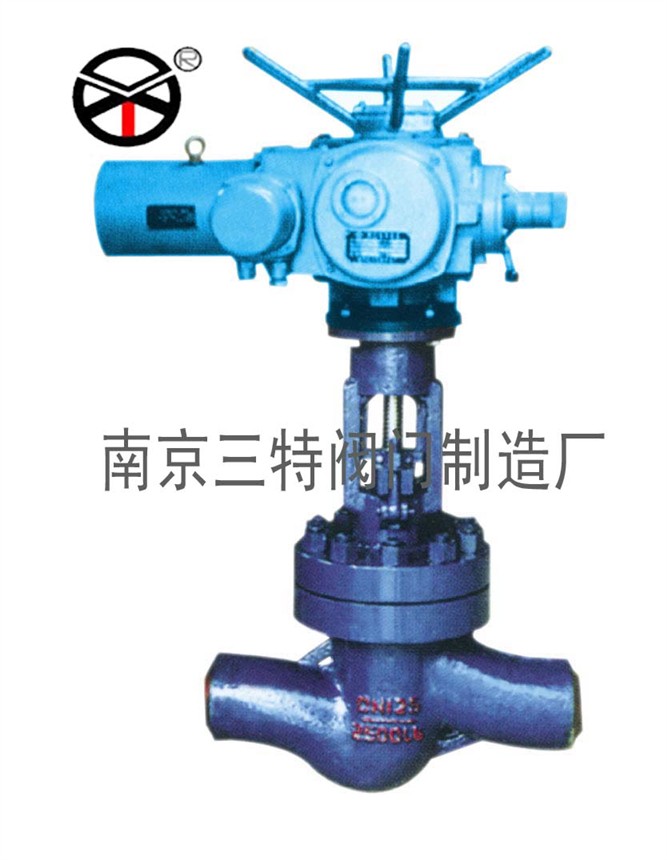

电动截止阀J941H/J961Y
高压截止阀。高温截止阀。高压高温截止阀。电动截止阀J941H/J961Y。气动截止阀J641H。气动角座阀。日标截止阀J41W。德标截止阀。美标截止阀J41W。保温截止阀BJ41H/BJ45。高温截止阀J41Y/J61Y。高压截止阀J41H、对焊截止阀J61Y/J65Y/J64H。高温高压截止阀。Y形截止阀J45/J65Y。自密封截止阀J41W/J61W。黄铜截止阀J11W。铸铁截止阀J41TW。铸钢截止阀J41H。锻钢截止阀。不锈钢截止阀J41W。铬钼钢截止阀J41Y-100I。波纹管截止阀WJ41/WJ44/WJ61H、保温波纹管截止阀BWJ41W。丝口截止阀J11W。法兰截止阀J41。氧气截止阀JY41W。真空截止阀NKJ41H/44H/J61。水封截止阀DS41H/DS61H。伞齿轮截止阀J541H。氨用截止阀J41B/J42B/J61B/J21B/J11B。角式截止阀J44H。衬氟截止阀J41F4/J45F4。衬胶截上阀J41J/J45J。塑料截止阀J41F-6S、J11F-6S。液化气截止阀J41F。天燃气截止阀J41N。低温截止阀DJ41W。撞击式大口径截止阀。蒸汽截止阀。节流阀、高压节流阀、截止节流平衡阀L41Y/L44Y/L46Y/L86Y/L87Y/L66Y/L67Y/L47Y。节流截止放空阀FJ41Y。节流截止排污阀TPJ41Y。

公称压力1.6MPa
DN L  D  D1  D2  b  f  Z-d  H  Weight
50(DZW10I)  230 160 125 100 16 3 4-18 645 48
65(DZW10I)  290 180 145 120 18 3 4-18 690 60
80(DZW10)  310 195 160 135 20 3 8-18 715 65
100(DZW15)  350 215 180 155 20 3 8-18 770 71
125(DZW20)  400 245 210 185 22 3 8-18 780 119
150(DZW30)  480 280 240 210 24 3 8-23 810 231
200(DZW45)  600 335 295 265 26 3 12-23 967 320
250(DZW60)  650 405 355 320 30 3 12-25 1143 550
300(DZW90)  750 460 410 375 30 3 12-25 1292 785

公称压力
Pressure Class 试验压力Testpressure
壳体 Shell 密封（水）
Seat(water) 密封（气）
Seat(Air) 上密封 （水）
Back Seat (water)
2.5 3.8 2.8 0.6 2.8

公称压力2.5MPa
DN L  D  D1  D2  b  f  Z-d  H  Weight
50(DZW10I)  230 160 125 100 20 3 4-18 645 50
65(DZW10I)  290 180 145 120 22 3 8-18 690 62
80(DZW15)  310 195 160 135 22 3 8-18 715 67
100(DZW20)  350 230 190 160 24 3 8-23 770 73
125(DZW30)  400 270 220 188 28 3 8-25 780 127
150(DZW45)  480 300 250 218 30 3 8-25 875 215
200(DZW60)  600 360 310 278 34 3 12-25 967 322
250(DZW90)  650 425 670 332 36 3 12-30 1153 585
300(DZW120)  750 485 430 390 40 4 16-30 1292 795


公称压力
Pressure Class 试验压力Testpressure
壳体 Shell 密封（水）
Seat(water) 密封（气）
Seat(Air) 上密封 （水）
Back Seat (water)
4.0 6.0 4.4 0.6 4.4


公称压力4.0MPa
DN L  D  D1  D2  D6  b  f2  f  Z-d  H  Weight
50(DZW10I)  230 160 125 100 88 20 4 3 4-18 645 61
65(DZW10I)  290 180 145 120 110 22 4 3 8-18 690 75
80(DZW20I)  310 195 160 135 121 22 4 3 8-18 715 84
100(DZW30)  350 230 190 160 150 24 4.5 3 8-23 77
