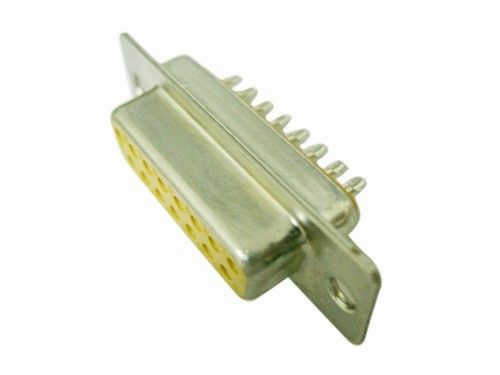

DB系列位置: 2*XP 3*XP
塑高: Xmm
额定电流: 1AMP
耐压: 500V AC/分钟
工作温度: -40°C至+105 °C
接触热阻: 20mΩ (最大值)
绝缘电阻: 1,000MΩ (最小值)
绝缘材料: 聚酯(UL94V-0),标准: LCP+30%GF
接触材料: 磷青铜
接触镀层: Au或Sn, 超过50μ'' Ni
Position: 2*XP 3*XP
models high: Xmm
nominal current: 1AMP
pressure resistance: 500V AC/minute
operating temperature: -40°C to +105 °C
contact thermal resistance: 20mΩ (maximum value)
dielectric resistance: 1,000MΩ (minimum value)
insulation material: Polyester (UL94V-0), standard: LCP+30%GF
contact material: Phosphor bronze
contact coating: Au or Sn, surpass 50μ '' Ni
