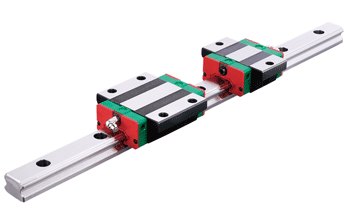

乐清市思凯利贸易有限公司是一家专业从事自动化配件所必需的HIWIN直线导轨http://www.abbaskl.com、直线轴承，滚珠丝杆，塑料拖链，低压电器等.我公司备有大量库存，主要从事品牌台湾ABBA直线导轨，台湾HIWIN直线导轨，韩国SBC直线导轨，滚珠丝杆，台湾CPC微型导轨等，欢迎来电咨询!
型号组件尺寸
(mm)滑块尺寸
(mm)滑轨尺寸
(mm) HH₁NWBB₁CL₁LGM×lK₁TH₂H₃W_RH_RDhdPE EGH 15SA244.59.534264-23.140.75.7M4×614.865.561512.564.53.56020 EGH 15CA2639.857.410.15 EGH 20SA2861142325-2950.612M5×718.757.5662015.59.58.566020 EGH 20CA3248.169.712.3 EGH 25SA33712.548356.5-35.561.112M6×921.9888231811976020 EGH 25CA355984.616.15 EGH 30SA421016604010-41.571.512M8×1226.75989282311978020 EGH 30CA4070.1100.121.05   型号

滑轨的
固定螺栓尺寸
(mm)

基本动
额定负荷
C(kN)

基本静
额定负荷
C₀(kN)容许静力矩重量 M_R
(kN-m)M_P
(kN-m)M_Y
(kN-m))滑块
(kg)滑轨
(kg/m) EGH 15SAM3×165.359.400.080.040.040.091.25 EGH 15CA7.8316.190.130.100.100.15 EGH 20SAM5×167.2312.740.130.060.060.152.08 EGH 20CA10.3121.130.220.160.160.24 EGH 25SAM6×2011.4019.500.230.120.120.252.67 EGH 25CA16.2732.400.380.320.320.41 EGH 30SAM6×2516.4228.100.400.210.210.454.35 EGH 30CA23.7047.460.680.550.550.76
