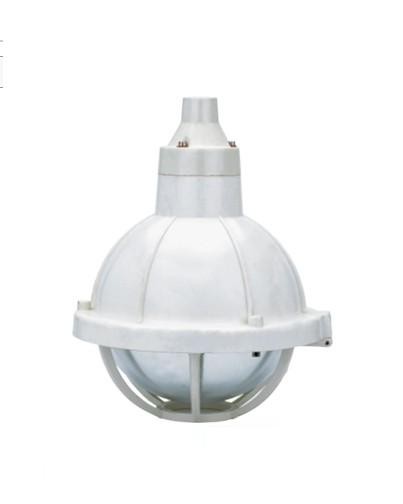

BGL-200S系列增安型防爆防腐灯(e)
适用范围:
1. 适用于1区、2区危险场所;
2. 适用于IIA、IIB、IIC类,温度组别为T1-T3的危险性气体环境;
技术参数:
1. 执行标准:GB3836-2000、IEC60079
2. 防爆标志:ExeIIT3
3. 额定电压:AC220V/50HZ
4. 防护等级:IP55
5. 防腐等级: WF2
6. 灯座规格:E27
7. 引入口规格:G3/4”
8. 电缆规格:Ф9mm-Ф14mm
产品特点:
1. 外壳采用玻璃纤维增强不饱和聚酯树脂(SMC)压制而成;
2. 灯体采用卡扣式结构紧固,能快速开启,便于安装于维护;
3. 钢化玻璃灯罩,不锈钢外露紧固件;
4. 钢管布线;
GL - 200S increase Ann type explosive-proof anticorrosive lights (e) BGL - 200S increase Ann type explosive-proof anticorrosive lights (e) BGL - 200S increase Ann type explosive-proof anticorrosive lights (e) BGL - 200S increase Ann type explosive-proof anticorrosive lights (e) BGL - 200S increase Ann type explosive-proof anticorrosive lights (e) BGL - 200S increase Ann type explosive-proof anticorrosive lights (e) BGL - 200S increase Ann type explosive-proof anticorrosive lights (e)
BGL - 200S series increase Ann type explosive-proof anticorrosive lights (e)
Applicable scope:
1. Suitable for district 1, 2 division dangerous places,
2. Suitable for type IIA, IIB IIC classes, and temperature classes for T1 - T3 risk of gas environment;
Technical parameters:
1.the implement standard: GB3836-2000, IEC60079
2. Explosion-proof marks: ExeIIT3
3. The rated voltage: AC220V / 50HZ
4. Protection grade: IP55
5. The anti-corrosion class: WF2
Six, lamp holder specification: E27
7. Introduce mouth specification: G3 1/4"
8. Cable specification: Ф 9mm - Ф 14mm
Product features:
1. The shell adopts glass fiber reinforced unsaturated polyester resin (S
